Steam Jacketed Mixing Tank Heating System Guide
A steam jacketed tank is one of the most efficient solutions for industrial processes that require controlled heating during mixing. From food production and cosmetics to pharmaceuticals and chemicals, these systems help manufacturers heat materials evenly while maintaining product quality.
At Shababtec, we design durable and efficient jacketed mixing tank systems for modern industrial production. This guide explains how a heating mixing tank works, its components, benefits, and industrial applications.

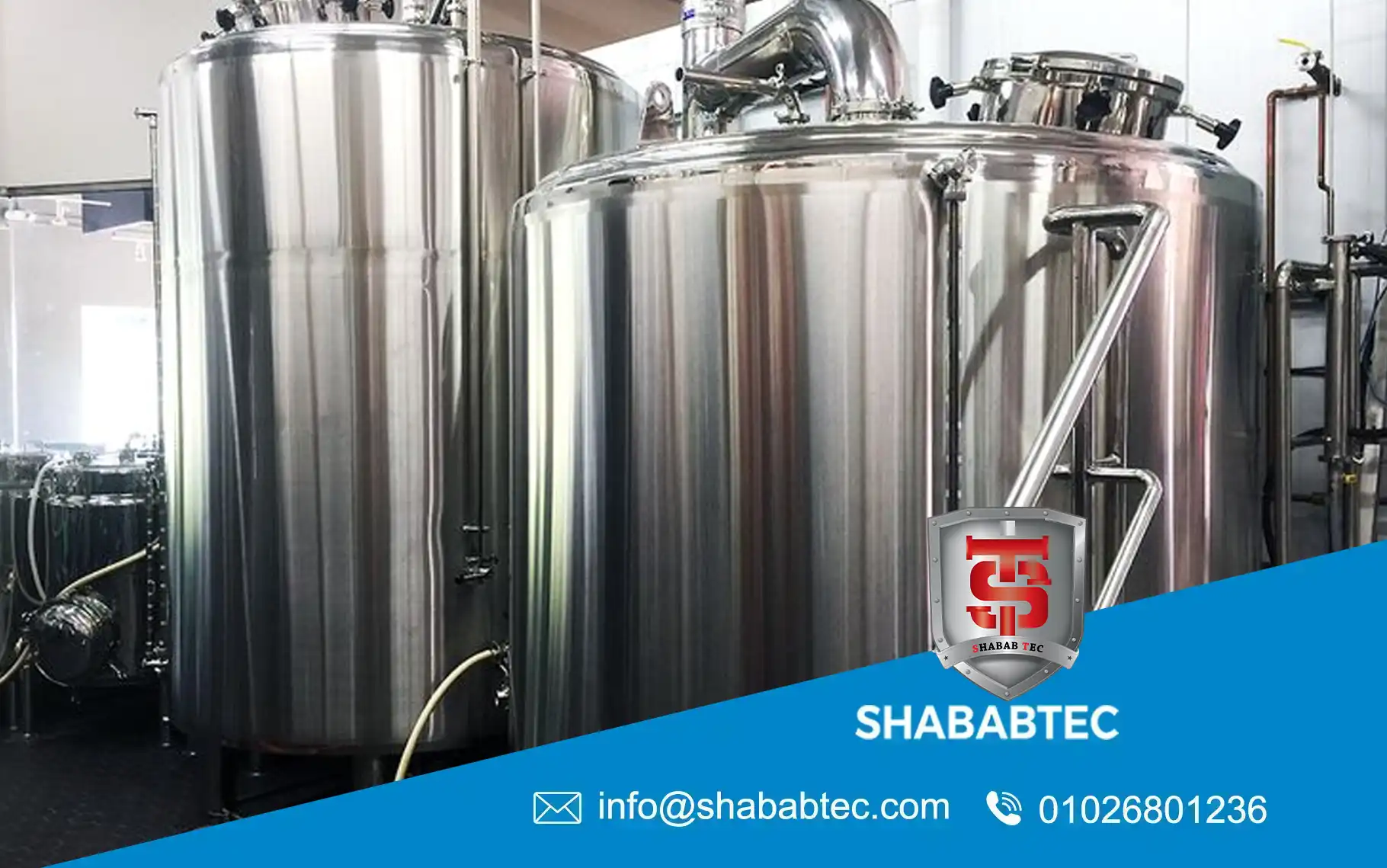

What is a Steam Jacketed Mixing Tank?

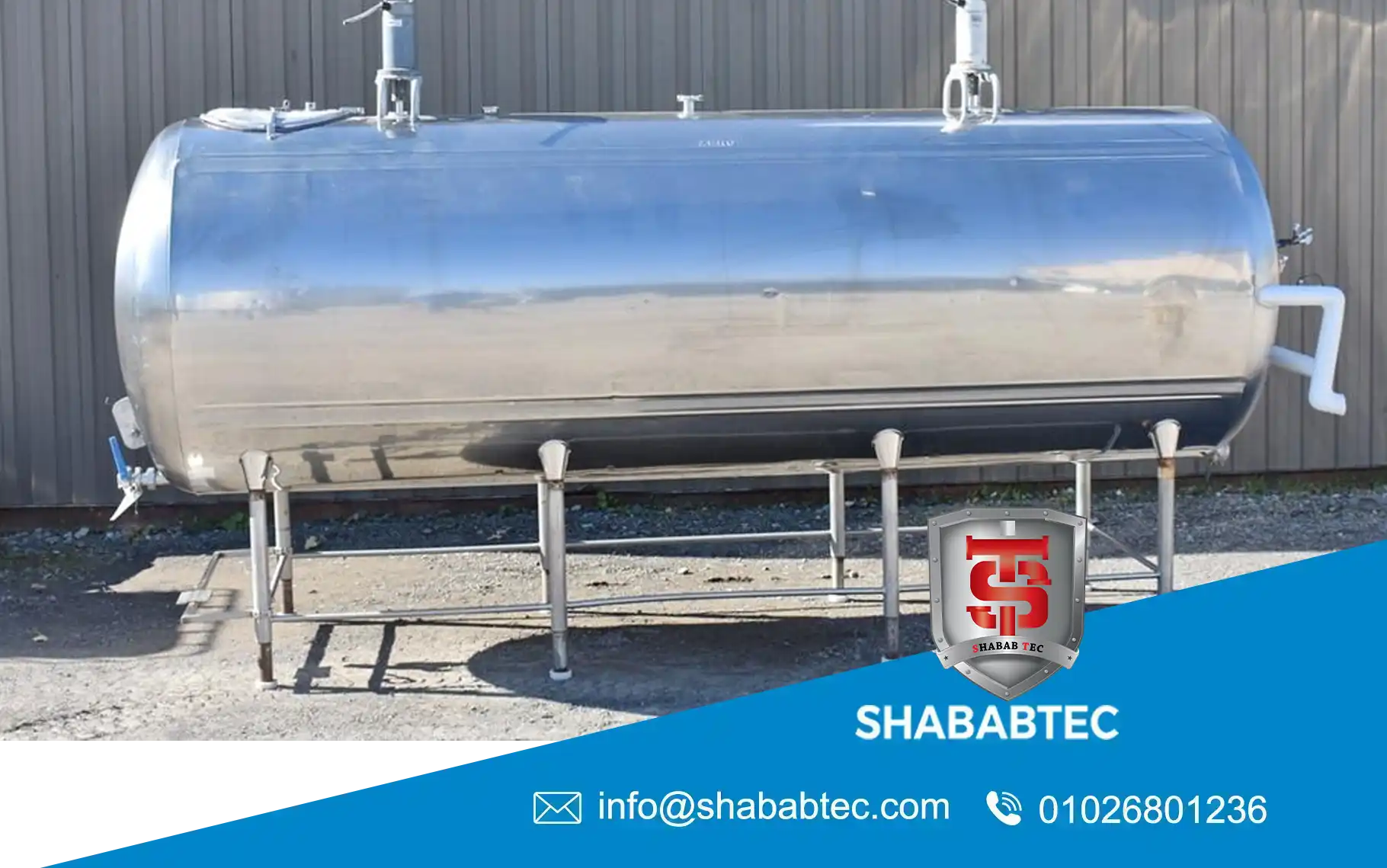

A steam jacketed tank is a mixing vessel surrounded by an outer jacket where steam circulates to transfer heat to the product inside the tank.
Unlike direct flame or surface heating, a steam heating tank provides indirect and uniform heat distribution, reducing hot spots and protecting sensitive materials.
Many industries choose a mixing tank heating system when accurate temperature control is essential.

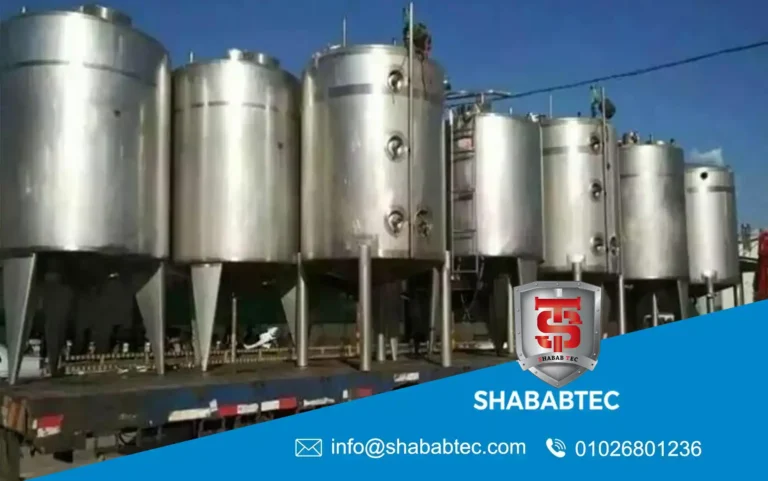

Image keyword: steam jacketed mixing tank stainless steel industrial

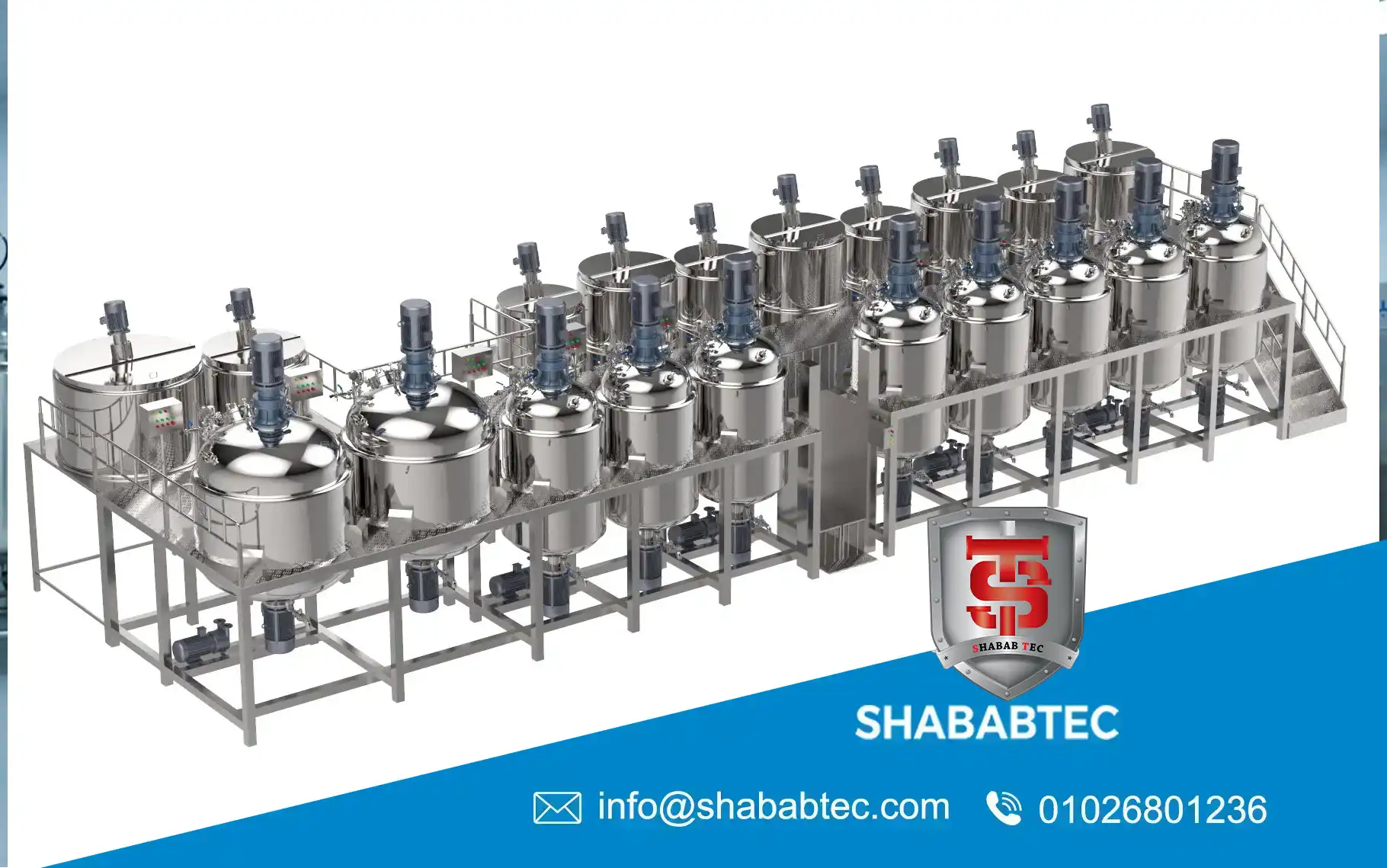

Main Components of a Jacketed Mixing Tank
- Main stainless steel tank (304 / 316L)
- Outer steam jacket
- Agitator or mixer shaft
- Steam inlet and condensate outlet
- Temperature gauge or sensor
- Control panel
- Optional insulation layer
These components allow a jacketed mixing tank to combine mixing and heating in one efficient system.

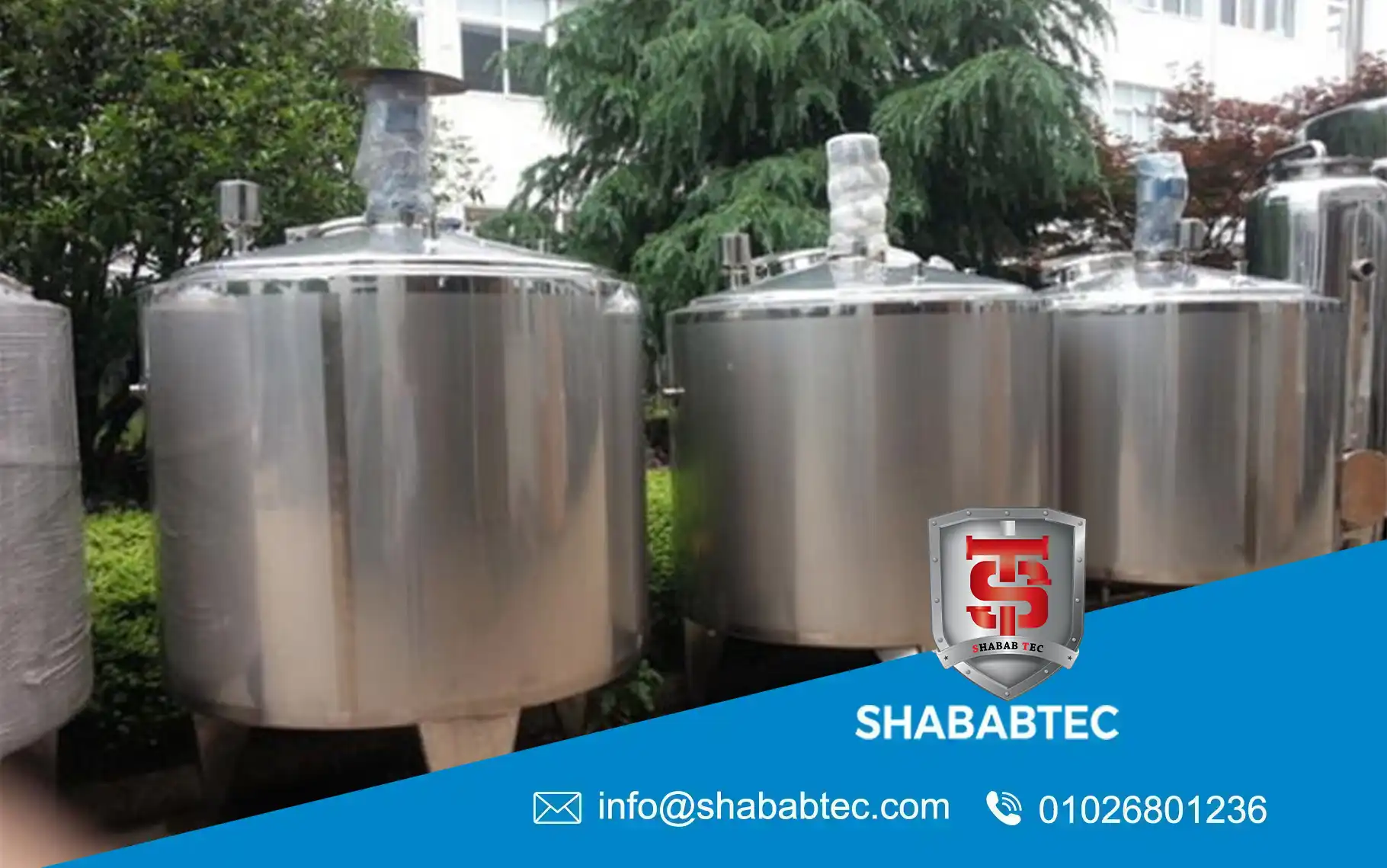

How a Steam Heating Tank Works
The working principle of a steam heating tank is simple and highly effective:
Step 1: Product Loading
Raw materials are placed inside the tank.
Step 2: Steam Enters Jacket
Steam flows through the outer jacket surrounding the vessel wall.
Step 3: Heat Transfer
Thermal energy passes through the tank wall and heats the product evenly.
Step 4: Continuous Mixing
The agitator rotates to prevent settling and improve heat distribution.
Step 5: Temperature Control
Operators regulate steam pressure or temperature settings based on process needs.

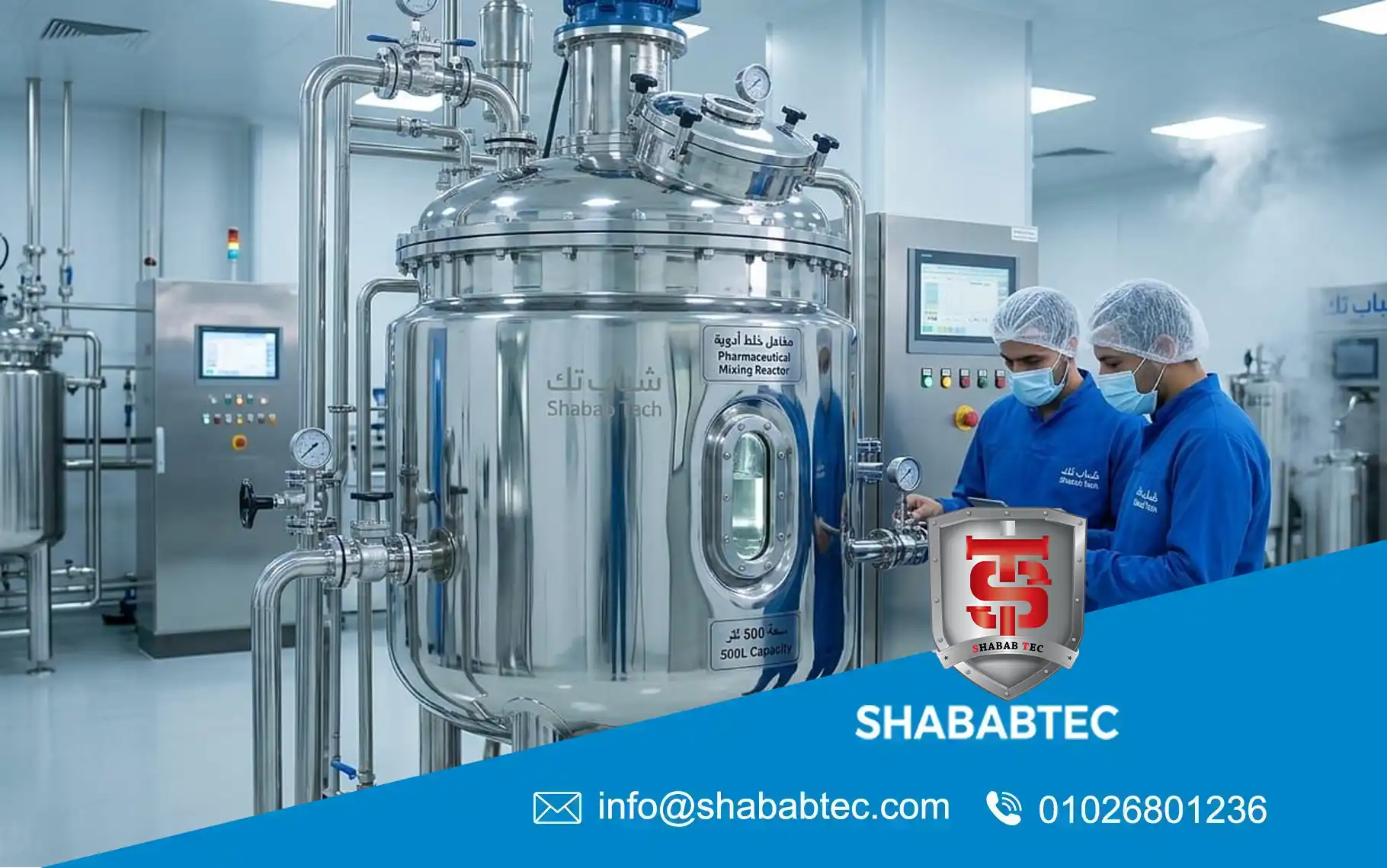

Types of Heating Mixing Tank Systems
1. Steam Jacketed Tank
The most common industrial solution for fast and efficient heating.
- Energy efficient
- Uniform heating
- Ideal for large batches
2. Electric Jacketed Mixing Tank
Uses electric heaters instead of steam.
- Good for small facilities
- Simple installation

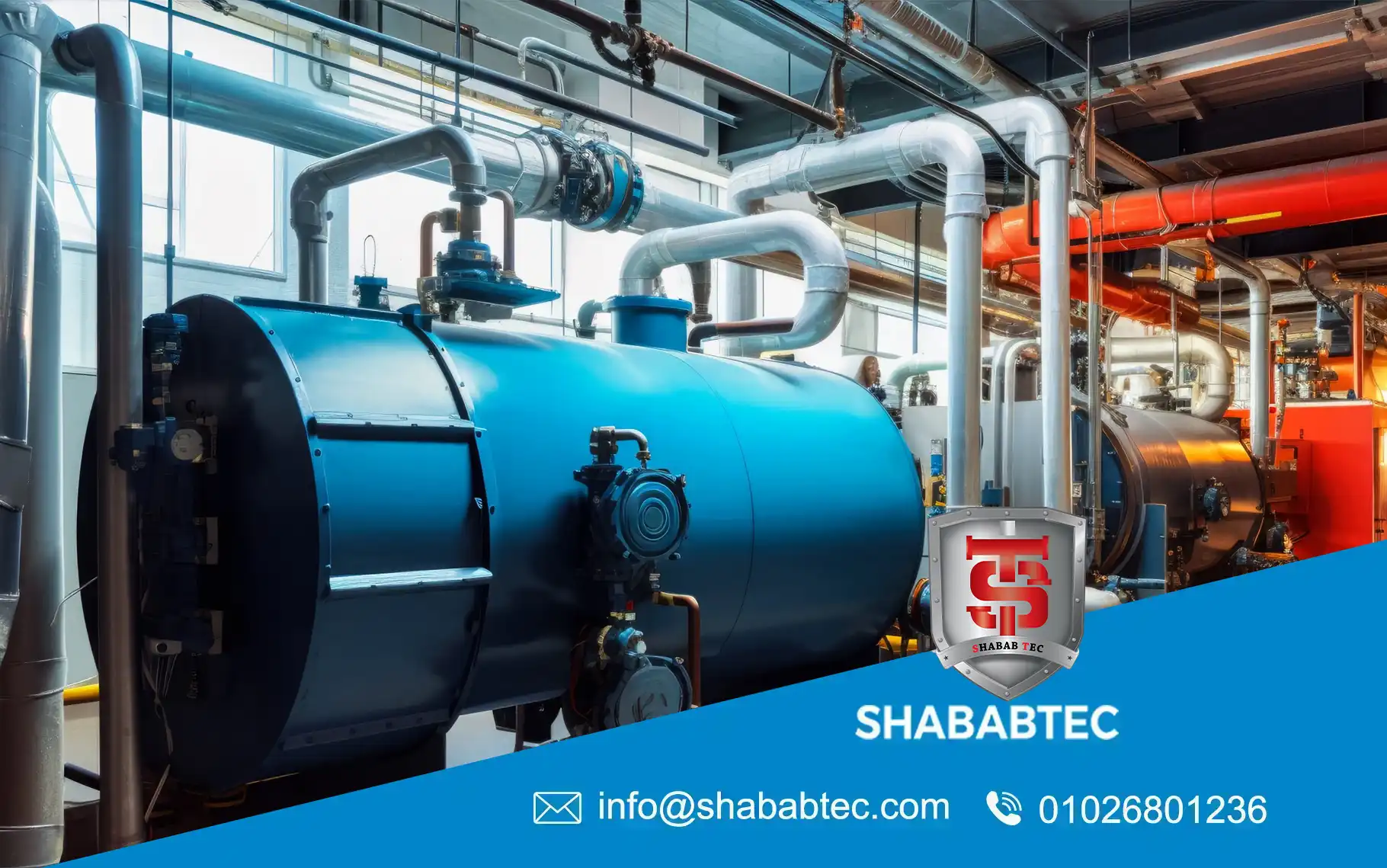

3. Insulated Industrial Heating Tank
An industrial heating tank with insulation reduces heat loss and saves energy.
4. Vacuum Heating Mixing Tank
Combines heating and vacuum processing for sensitive products.
Industrial Applications of Steam Jacketed Tanks
Food Industry
- Sauces
- Syrups
- Chocolate
- Jam
Cosmetics Industry
- Creams
- Lotions
- Wax products
Pharmaceutical Industry
- Ointments
- Liquid medicines
- Gels
Chemical Industry
- Adhesives
- Detergents
- Resins
These industries rely on steam jacketed tank systems for reliable and safe temperature-controlled production.
Why Businesses Invest in a Steam Jacketed Mixing Tank
For manufacturers focused on productivity, consistency, and lower operating costs, a steam jacketed tank is more than a vessel—it is a profit-driving production asset.
A professionally designed heating mixing tank reduces processing time, improves heat efficiency, and increases batch repeatability. This means faster output, lower waste, and stronger product consistency across every production cycle.
For companies scaling production, upgrading from basic tanks to a modern jacketed mixing tank often delivers measurable returns within a short period.
Commercial Benefits of a Jacketed Mixing Tank
1. Faster Production Cycles
Heating raw materials quickly shortens total batch time. A high-efficiency steam heating tank allows faster melting, dissolving, blending, and cooking compared with standard unheated vessels.
- More batches per shift
- Higher daily output
- Better machine utilization
2. Better Product Consistency
Stable temperature is critical in industrial production. A reliable mixing tank heating system helps maintain repeatable viscosity, texture, color, and ingredient dispersion.
- Consistent product quality
- Reduced rejected batches
- Improved customer satisfaction
3. Lower Labor Dependency
With automated controls, operators spend less time manually heating or adjusting product temperature.
- Reduced supervision time
- Fewer operator errors
- More efficient workforce use
4. Reduced Energy Waste
An insulated industrial heating tank uses thermal energy more efficiently, especially when compared with open heating methods.
- Lower utility costs
- Reduced heat loss
- Improved sustainability
Best Industries to Buy a Steam Jacketed Tank
Food Factories
Food manufacturers use steam jacketed tank systems for cooking, blending, melting, and holding temperature-sensitive products.
- Sauce production
- Syrup preparation
- Chocolate melting
- Jam processing
Cosmetics Manufacturers
Many cream and lotion formulas require controlled heating to melt waxes and combine oil/water phases smoothly.
- Face cream
- Body lotion
- Hair mask
- Gel products
Pharmaceutical Plants
A hygienic jacketed mixing tank supports regulated production environments where consistency matters.
- Ointments
- Topical creams
- Liquid compounds
Chemical Producers
Chemical facilities use an industrial heating tank for viscosity control and ingredient activation.
- Adhesives
- Detergents
- Resins
- Industrial coatings
Comparison Table: Standard Tank vs Steam Jacketed Mixing Tank
| Feature | Standard Tank | Steam Jacketed Tank |
|---|---|---|
| Heating Speed | Low | High |
| Temperature Control | Limited | Precise |
| Batch Consistency | Moderate | Excellent |
| Production Efficiency | Average | High |
| Best for Scaling | No | Yes |
How to Choose the Right Heating Mixing Tank
1. Required Capacity
Select a tank size based on your real production demand, not just current output.
- 100L–300L for small production
- 500L–1000L for medium factories
- 2000L+ for industrial scale
2. Product Viscosity
Thicker products require stronger agitators and better torque transmission.
3. Steam Availability
If your facility already uses a boiler, a steam heating tank is usually the most cost-effective option.
4. Material Grade
- 304 stainless steel = standard use
- 316L stainless steel = corrosive or hygienic applications
5. Automation Level
PLC systems, timers, and temperature sensors improve productivity and repeatability.
Custom Features That Increase ROI
When purchasing a jacketed mixing tank, optional upgrades can dramatically improve long-term value:
- Variable speed agitator
- Digital temperature controller
- Load cells for weighing
- CIP cleaning system
- Insulation cladding
- Bottom discharge valve
- Vacuum lid system
- PLC automation
These upgrades reduce downtime and increase production precision.
Cost of a Steam Jacketed Tank
Pricing depends on several commercial factors:
- Tank volume
- Stainless steel thickness
- 304 or 316L material
- Motor power
- Steam pressure rating
- Control system type
- Custom fabrication requirements
While entry-level systems cost less, premium industrial heating tank models usually offer stronger ROI through faster output and reduced maintenance.
Why Choose Shababtec?
At Shababtec, we supply production-ready steam jacketed tank systems engineered for industrial reliability and long service life.
- Custom capacities and dimensions
- High-quality stainless steel fabrication
- Efficient agitator systems
- Steam-ready safe designs
- Built for cosmetics, food, pharma, and chemicals
- Technical support and consultation
Whether you need a startup unit or a full production line, Shababtec helps you choose the right heating mixing tank for your process.
Request a Quote for Your Mixing Tank Heating System
If you are planning to upgrade production, expand capacity, or improve heating efficiency, now is the right time to invest in a modern mixing tank heating solution.
Contact Shababtec for a customized recommendation based on your industry, batch size, and product type.
Frequently Asked Questions (FAQs)
What is a jacketed mixing tank?
A jacketed mixing tank is an industrial vessel designed with an outer jacket that allows heating or cooling media such as steam, hot water, or chilled water to circulate around the main tank. This system helps control product temperature during mixing and processing.
What is a jacketed storage tank?
A jacketed storage tank is a storage vessel equipped with an external jacket used to maintain or regulate the temperature of stored materials. It is commonly used for products that must remain warm, fluid, or temperature-stable during storage.
What is the function of mixing tank?
The main function of a mixing tank is to blend, dissolve, suspend, or homogenize ingredients into a uniform product. Many systems also include heating, cooling, agitation, and controlled processing functions depending on industrial requirements.
ما هو خزان التخزين ذو الغلاف؟
خزان التخزين ذو الغلاف هو خزان مزود بطبقة خارجية إضافية تسمى الغلاف (Jacket)، يتم من خلالها تمرير بخار أو ماء ساخن أو بارد للحفاظ على درجة حرارة المادة المخزنة أو تعديلها حسب الحاجة الصناعية.
ما هو خزان الخلط؟
خزان الخلط هو وعاء صناعي يُستخدم لخلط المواد السائلة أو شبه الصلبة أو المساحيق للحصول على منتج متجانس. وقد يحتوي على موتور تقليب، نظام تسخين أو تبريد، وتحكم في السرعة والحرارة حسب نوع الاستخدام.
Conclusion
A steam jacketed tank is one of the smartest investments for manufacturers needing reliable heat-controlled mixing. It improves productivity, lowers waste, increases quality consistency, and supports growth.
For serious production environments, a professionally built jacketed mixing tank creates long-term operational advantage.
