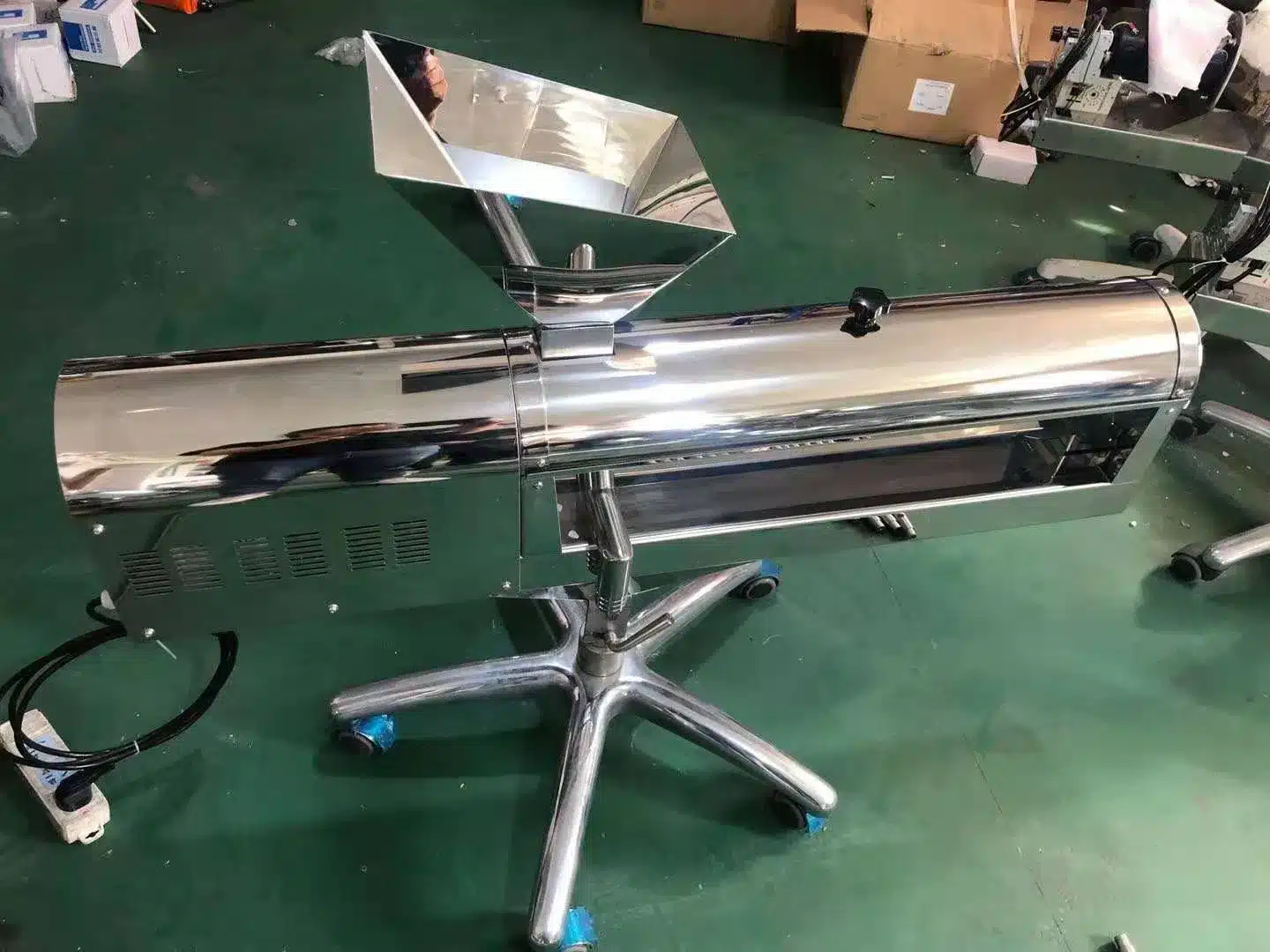

Capsule Polishing Machine
Capsule polishing equipment for post-filling capsule cleaning and integration with pharmaceutical production lines.
ShababTec supports capsule polishing equipment within its powder and solid-processing scope, with machine selection based on line output, capsule formats, required functions, cleaning and upstream/downstream integration.
Where the Capsule Polisher Fits in the Production Line
The polisher is normally considered after capsule filling and before final collection or downstream inspection and packaging. The exact interfaces depend on the selected equipment.
Capsule Filling
Filled capsules leave the upstream capsule-filling process.
Capsule Polishing
Loose powder is removed from the capsule surface.
Downstream Process
Collection, inspection, detection, counting or packaging as applicable.

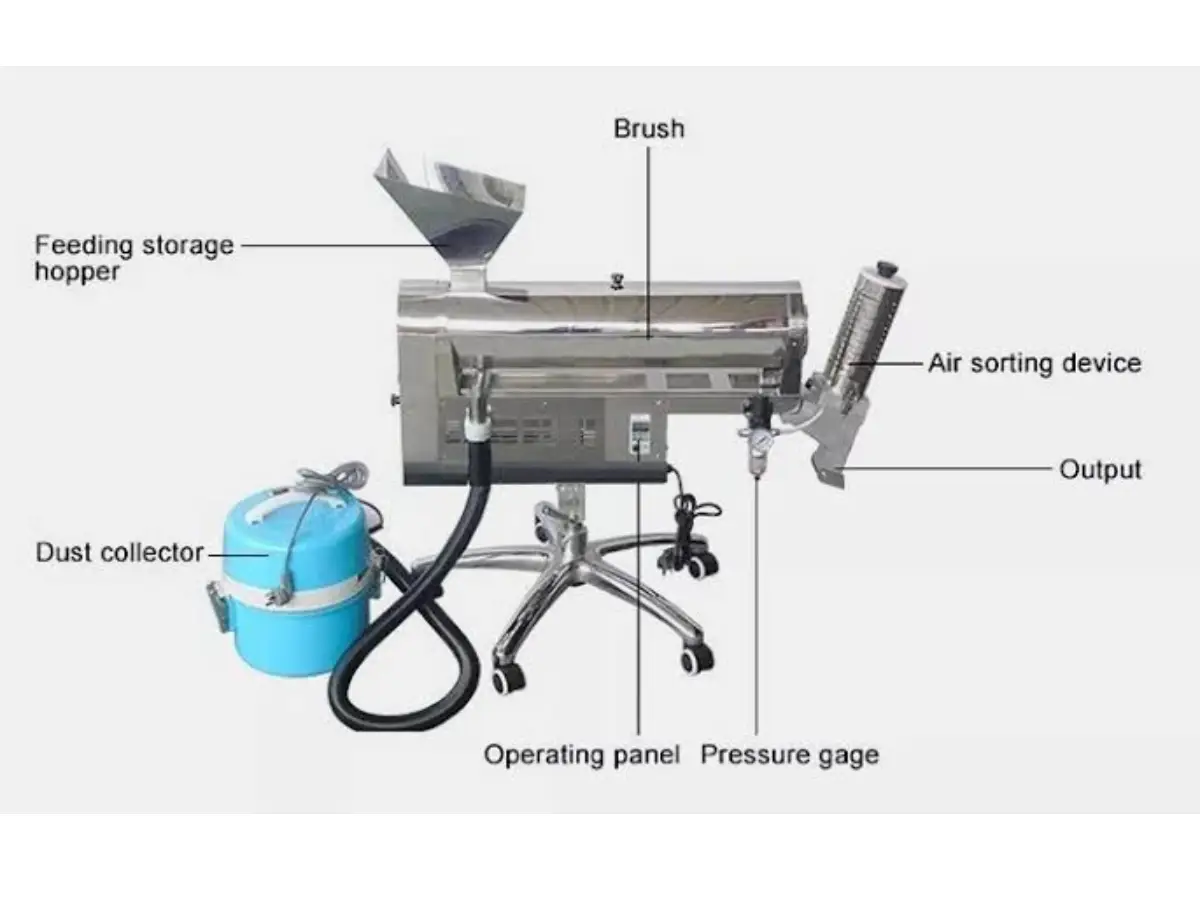

How Capsule Polishing Works
The purpose is to remove loose powder or residue remaining on the outside of filled capsules before the next process stage.
In common capsule-polisher designs, capsules move through a polishing chamber where a rotating or spiral brush loosens surface powder while the machine guides the capsules toward the outlet.
The removed dust must then leave the polishing area through the selected extraction arrangement. Depending on the machine model, this may be an integrated system or an external dust extraction connection.
Polishing Only or Polishing + Sorting?
Capsule-polishing machines are not all configured the same way. Required functions should be defined before comparing models.
Capsule Polishing Function
The core task is removal of loose surface powder from capsules after filling.
Polishing + Sorting Configuration
Some market models combine polishing with rejection or sorting functions for unsuitable capsules.
What Must Be Confirmed Before Selecting a Capsule Polisher?
Output is only one part of the specification. The machine must match the actual capsule line and operating requirements.
Match the polisher with the operating rate of the capsule-filling line.
State all capsule sizes expected to run on the selected equipment.
Confirm whether different capsule formats require adjustments or replacement parts.
Confirm whether dust removal is integrated or requires external extraction.
Decide whether polishing only or additional rejection functions are required.
Provide the capsule-filling machine model and outlet arrangement where available.
Define whether capsules continue to collection, inspection, detection or packaging.
Check footprint, equipment height, inlet/outlet positions and maintenance access.
Model-Specific Specifications
These values should come from the approved ShababTec Capsule Polisher datasheet. No universal figures are being assumed.
| Specification | Required Confirmation |
|---|---|
| Machine Model | Confirm from approved quotation / datasheet |
| Rated Output | Model-specific — capsules/hour or capsules/minute |
| Capsule Sizes | Confirm supported capsule formats |
| Change Parts | Confirm whether format changes require parts |
| Product-Contact Material | Confirm material grade from actual model |
| Polishing Mechanism | Confirm brush / chamber configuration |
| Dust Extraction | Integrated / external / required interface |
| Sorting / Rejection | Confirm available functions for selected model |
| Electrical Supply | Confirm voltage, phase and frequency |
| Dimensions & Weight | Confirm from general arrangement / datasheet |
Cleaning Access Should Be Checked Before Purchase
Routine cleaning and changeover should be considered together with output and capsule compatibility.
Confirm how easily the capsule-contact area can be opened, inspected and cleaned.
Confirm removal, cleaning, inspection and replacement procedure.
Extraction hoses, dust containers or filters must remain accessible where included.
Review cleaning effort when moving between products or capsule formats.
Routine wear points should be visible and serviceable without unnecessary dismantling.
Brush, seals and other wear components should be identified for the selected model.

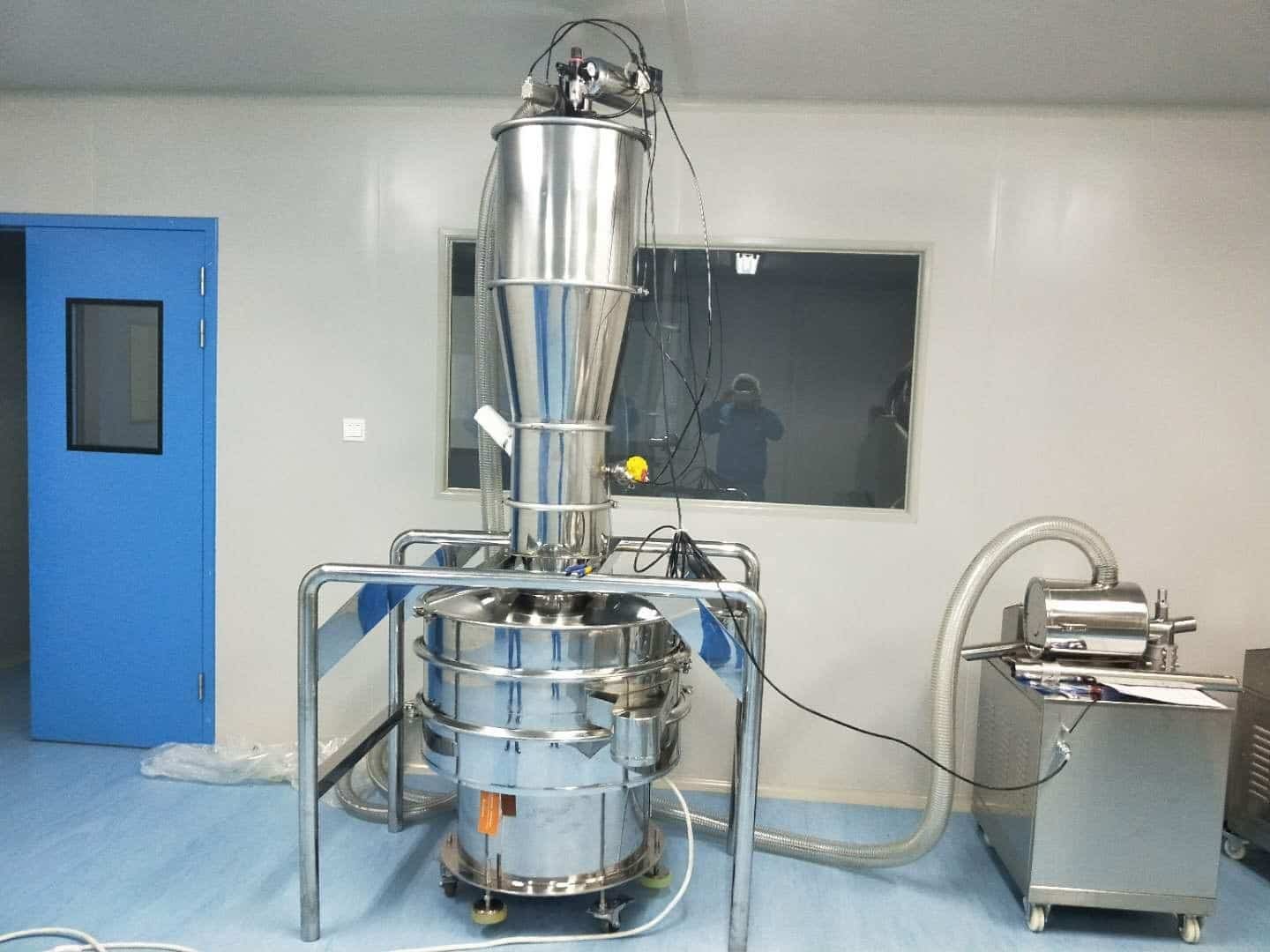

Integrate the Capsule Polisher with the Actual Production Line
ShababTec lists Capsule Polishers within its Powder Mixing & Solid Processing project range and supports pharmaceutical equipment projects in Egypt.
The wider ShababTec project workflow can include equipment selection, engineering, installation, testing, commissioning, documentation support and after-sales assistance.
What to Send for a Capsule Polisher Quotation
These inputs help match the machine to the existing or planned capsule-production line.
Required Output
Provide the capsule-filling line production rate.
Capsule Sizes
List all capsule sizes the machine must handle.
Capsule Filler
Provide upstream machine model or outlet information where available.
Sorting Requirement
State whether you need polishing only or polishing plus rejection.
Dust Extraction
State whether external extraction is available in the facility.
Downstream Process
Collection, inspection, detection, counting or packaging.
Electrical Supply
Provide available voltage, phase and frequency.
Available Space
Share the line layout or available installation dimensions.
Already know your capsule filler and required output?
Send the capsule sizes, line rate and downstream requirement so ShababTec can identify the appropriate polisher configuration.
Capsule Polishing Machine FAQ
What does a capsule polishing machine do?
A capsule polishing machine removes loose powder or residue from the outer surface of filled capsules before collection or another downstream production stage.
Where is a capsule polisher installed in the production line?
It is commonly installed after capsule filling and before downstream collection, inspection, detection, counting or packaging. Final integration depends on the selected machines.
Does a capsule polishing machine also sort defective capsules?
Some capsule-polisher models include sorting or rejection functions, while others perform polishing only. This feature must be confirmed for the selected ShababTec model.
Does the ShababTec Capsule Polisher include dust extraction?
The exact dust-removal arrangement has not yet been published as a universal ShababTec specification. The selected model should confirm whether extraction is integrated or requires an external connection.
Which capsule sizes can the machine handle?
Capsule-size compatibility is model-specific. All required capsule sizes should be stated in the RFQ so compatibility and any change-part requirements can be confirmed.
How should a capsule polisher be cleaned?
Cleaning depends on the actual equipment construction. The polishing chamber, brush or polishing element, capsule-contact parts, dust path and removable components should be reviewed in the approved cleaning and maintenance procedure.
Can the polisher be connected directly to a capsule filling machine?
Direct line integration may be possible depending on the machines, but output, inlet and outlet height, capsule flow and mechanical interfaces should be confirmed before ordering.
Does ShababTec provide installation and commissioning?
ShababTec's published project workflow includes equipment integration, installation, testing, commissioning, documentation support and after-sales assistance according to project scope.
What information should I send for a capsule polisher quotation?
Send the required output, capsule sizes, capsule-filling machine information, sorting requirement, dust-extraction requirement, downstream process, electrical supply and available installation space.
Request the Right Capsule Polisher Configuration
Share your capsule sizes, filling-line output, required polishing and sorting functions, downstream equipment and facility details. ShababTec can review the requirement before the final model is selected.
