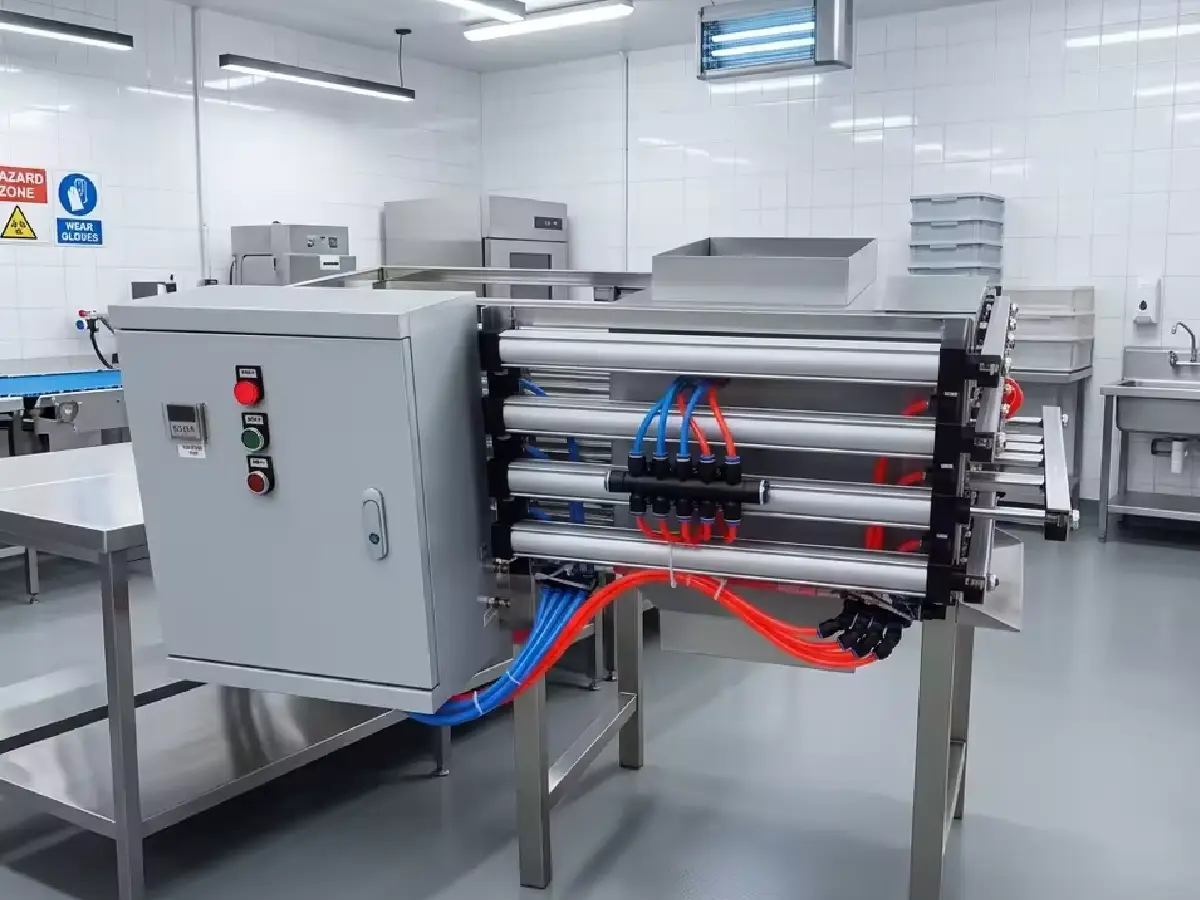

Pharmaceutical Magnetic Separator
Magnetic contamination control integrated with pharmaceutical powder mixing, feeding and transfer processes.
ShababTec supports magnetic separation requirements around the actual product flow, contamination risk, installation point, production requirement, cleaning method and surrounding powder-processing equipment.
Where Can Ferrous Contamination Enter the Process?
Metal contamination can enter a pharmaceutical powder process through raw materials, equipment wear, maintenance activities or loose metallic components. The control point should therefore be selected from the actual process rather than added at a random location.
Incoming Raw Material
Unwanted metal can enter with powder, granules or other incoming materials.
Equipment Wear
Repeated operation of upstream equipment can create metallic wear particles.
Maintenance Activity
Tools, fasteners or damaged components can introduce contamination after maintenance.
Process Transfer
Material can pass through multiple equipment interfaces before reaching the final stage.
Magnetic Separator vs Electronic Metal Detector
They address metal contamination using different operating principles and should not be treated as interchangeable product names.
Captures Magnetic Contamination
Uses a magnetic field to attract and physically retain contamination that responds to the magnetic field while the product continues through the process.
Detects Metal Electronically
Uses an electronic sensing field to detect metal and can signal an alarm or activate a reject system depending on the equipment.

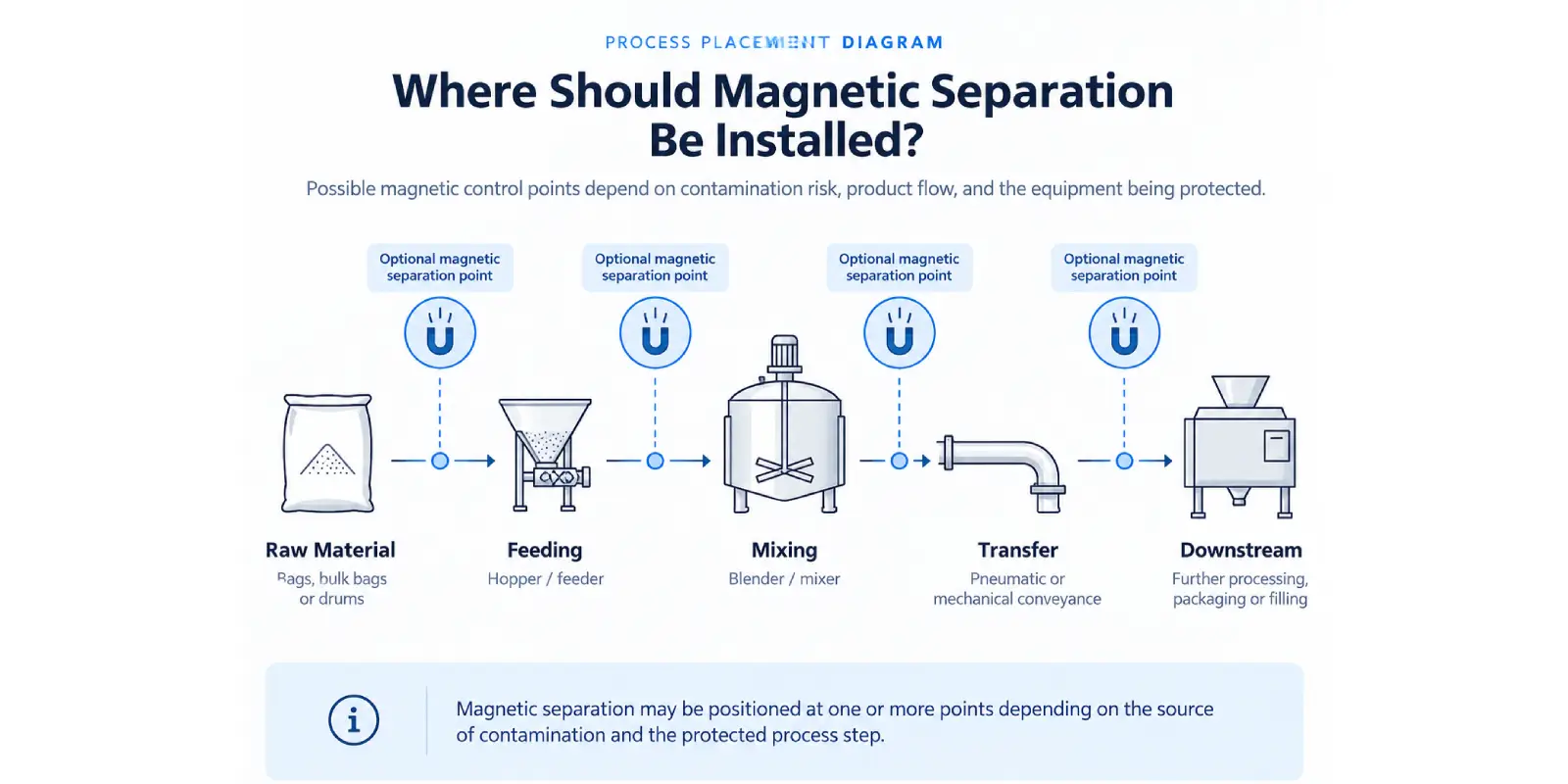

Where Should Magnetic Separation Be Installed?
The best position depends on where contamination can enter, the product flow and which process or equipment needs protection.
Raw Material Intake
A possible early control point before contamination travels further into the process.
Before Mixing
Can protect mixers or blenders from magnetic contamination already present in incoming material.
After Mixing
Can provide another control point before blended material reaches downstream processing.
Gravity Discharge
Hopper and chute locations can suit certain magnetic-separation configurations.
Powder Transfer Route
Certain separator designs can be integrated with enclosed or pneumatic powder-transfer systems.
Before Downstream Equipment
Magnetic separation may be positioned to protect a critical downstream process or equipment item.
These are possible engineering locations — not a recommendation to install a magnet at every stage.
How Pharmaceutical Magnetic Separation Works
Effective separation depends on magnetic performance, product exposure and practical contaminant removal working together.
Powder or granules reach the separator through the selected process connection.
Material passes through or near the magnetic elements.
Magnetically responsive contamination is drawn toward the magnetic surface.
The bulk product continues toward the downstream process.
Captured contamination remains on the separator until cleaning.
Retained contamination is removed according to the approved cleaning and inspection procedure.
Product exposure, available flow area, installation geometry and cleaning access also influence the practical separator configuration.
What Defines the Correct Magnetic Separator?
Product Type
Powder, granule or other material passing through the control point.
Flowability
Cohesive or difficult-flowing materials may require a different arrangement from free-moving powders.
Production Rate
The separator must handle the required product flow without becoming an unnecessary process restriction.
Installation Point
Raw-material, gravity, mixer, discharge and transfer-line locations can require different configurations.
Line / Chute Size
Connection dimensions and available installation envelope influence physical equipment design.
Contamination Risk
Identify likely metal source and which downstream operation requires protection.
Cleaning Requirement
Captured contamination must be removable through a practical and repeatable cleaning procedure.
Facility Conditions
Access, product changeover, maintenance and surrounding equipment form part of the selection.
Common Magnetic Separation Configurations
Pharmaceutical magnetic separators are available in different geometries according to product flow and installation method. Final ShababTec configuration must be confirmed in the technical offer.
Magnetic Rods
Individual magnetic elements used as the basis of many powder-separation configurations.
Availability: confirm per projectMagnetic Grid / Grate
Multiple magnetic elements arranged across the product flow to increase product exposure.
Availability: confirm per projectHoused Separator
Magnetic elements installed in an enclosed housing with defined inlet and outlet interfaces.
Availability: confirm per projectTransfer-Line Configuration
Specialized separator arrangements can be used in some pneumatic or enclosed powder-transfer applications.
Availability: confirm per projectContamination Removal Should Not Create a Flow Problem
More magnetic surface is only useful if the product can still pass through the separator in a reliable way.
Free-flowing powders can behave very differently from cohesive materials or products prone to bridging. The separator arrangement must therefore balance magnetic exposure with sufficient product-flow area.
Required throughput, powder behaviour, hopper or chute geometry and downstream flow should all be checked before the separator configuration is finalised.
Provide adequate contact with the magnetic zone to support contaminant capture.
Maintain practical flow area and avoid unnecessary restriction for the actual powder.
How Should Magnetic Performance Be Specified?
A Gauss number without measurement context is not enough to define the actual separator performance.
Confirm the value for the selected model instead of applying a generic figure across every separator.
The technical data should state where the magnetic value is measured.
Magnetic material and grade should be confirmed from the actual datasheet.
Stainless-steel grade should be stated for the actual separator.
Any design limits should come from the approved model specification.
Publish a finish value only when it is confirmed for the supplied equipment.
ShababTec should publish magnetic performance only after the selected separator and measurement basis are confirmed.
Captured Contamination Must Be Easy to Remove and Inspect
The separator should remain practical throughout routine production, product changeover and maintenance.
Magnetic elements and product-contact surfaces should remain accessible according to the selected design.
Captured contamination should be removed through a controlled procedure that prevents it from returning to the product stream.
Magnetic surfaces, housing and connections should be included in routine inspection procedures.
The facility can define how captured foreign material is recorded and investigated within its quality system.
Testing method and frequency should follow the actual product specification and facility quality requirements.
Multi-product applications should consider cleaning and inspection between production campaigns.
Integrate Magnetic Separation with the Complete Powder Route
From Contamination-Risk Review to Installation
ShababTec's process-first engineering approach allows the separator to be coordinated with the powder line rather than selected as an isolated component.
Requirement Study
Review product, contamination risk, process flow and proposed location.
Equipment Selection
Define separator configuration and required process interfaces.
Engineering & Fabrication
Coordinate approved equipment and project-specific stainless-steel interfaces.
Installation
Position the equipment at the approved control point within the process.
Testing & Commissioning
Check installation and prepare the supplied system for operation.
Documentation & Support
Provide agreed documentation, maintenance guidance and after-sales support.
What to Send for a Pharmaceutical Magnetic Separator RFQ
Product
Powder, granule and relevant material characteristics.
Required Flow Rate
State the production throughput at the intended installation point.
Powder Behaviour
Describe flowability, cohesiveness or bridging issues.
Installation Point
Raw material, mixer inlet/outlet, hopper, chute or transfer line.
Connection Size
Provide pipe, chute, flange or hopper dimensions where available.
Contamination Concern
Describe known or suspected source of metallic contamination.
Cleaning Method
Define product-changeover and cleaning expectations.
Facility Conditions
Share available space, access and surrounding equipment information.
Have a powder process flow or installation drawing?
Send the product, flow rate, contamination concern and intended installation point so ShababTec can review the magnetic-separation requirement.
Pharmaceutical Magnetic Separator FAQ
What does a pharmaceutical magnetic separator remove?
A magnetic separator is intended to attract and retain ferrous or other magnetically responsive contamination from the product stream. Exact contaminant-capture capability depends on the separator's magnetic performance and design.
Is a magnetic separator the same as a metal detector?
No. A magnetic separator physically captures contamination using a magnetic field. An electronic metal detector senses metal electronically and can activate an alarm or reject system.
Where should a magnetic separator be installed in a powder line?
Possible locations include raw-material intake, before or after a mixer, at hopper or gravity discharge points, within suitable powder-transfer arrangements or before critical downstream equipment. The correct position depends on the actual contamination risk and process flow.
What Gauss rating should a pharmaceutical magnetic separator have?
A single universal value should not be selected without knowing the separator design and measurement conditions. ShababTec should confirm magnetic performance and the measurement basis for the actual supplied model in its technical datasheet.
Can a magnetic separator be installed before a powder mixer?
Yes, depending on the process and separator configuration. Pre-mixer installation can be a useful contamination-control point when incoming material is the identified risk source.
Can magnetic separation be integrated with powder transfer systems?
Certain magnetic-separator designs are intended for enclosed or pneumatic transfer applications. Availability and suitability must be confirmed against the actual ShababTec separator configuration.
How is a pharmaceutical magnetic separator cleaned?
Cleaning depends on the separator design. Captured contamination must be removed from magnetic elements and product-contact surfaces inspected according to the approved cleaning and maintenance procedure.
Does ShababTec provide installation and commissioning in Egypt?
ShababTec's published engineering scope includes equipment selection, fabrication, installation, testing, commissioning, documentation support and after-sales service.
What information should I send for a magnetic separator quotation?
Send the product type, required flow rate, powder behaviour, intended installation point, connection dimensions, contamination concern, cleaning requirements and available facility layout.
Integrate Magnetic Separation with Your Powder Process
Share the powder, flow rate, contamination concern, intended installation location and surrounding process information. ShababTec can review the requirement before the final separator configuration is defined.
